Place of Origin : Shandong, China
Brand Name : HUISIDUN
Model Number : HSD001-009
After-sales Service Provided : None
Warranty : None
Type : Reverse Osmosis, Water Filter Cartridge
Use : Household Pre-Filtration
Application : Car, RV, Outdoor, Hotel, Garage, Commercial, Household
Power Source : Electric, Gas
App-Controlled : NO
Private Mold : Yes
Product name : PP Filter Cartridge
Material : Polypropylene
Function : Removes Bacteria
Size : 5"/10"/20"/30"/40"
Color : White
Packaging Details : According to customer requirements and export carton
MOQ : 100 pieces
Price : $0.30/pieces 100-499 pieces
Brand | HuiSiDun | ||||||
Size | Diameter: 2.75" (69 mm) 4.5"(120 mm) | ||||||
Length: 5"/10"/20"/30"/ 40" etc. | |||||||
Filtration Area | Single 10" filter element is about 0.65m² | ||||||
Dissolution(20℃) | Testing The filters without pre-washing . After 24 hours immersion in water, the dissolution was less than 30 mg/10" filters. | ||||||
Minimum Bubble Point of Integrity Test Data | 0.1 μm: > 0.38 MPa in Water | ||||||
0.22 μm : > 0.32 MPa in Water | |||||||
0.45 μm: > 0.20 MPa in Water | |||||||
Conditions of steam sterilization and hot water sterilization | Sterilization temperature: hot water 85℃ | ||||||
Steam 121 ℃/30 min, more than 15 times | |||||||
Maximum pressure difference and temperature | Maximum operating temperature: 85℃/0.2 MPa; 25 ℃ | ||||||
Typical flow rate (Water, 20℃) | 0.1 um: 4 lpm/0.01MPa/10" | ||||||
0.22 um: 10 lpm/0.01MPa/10" | |||||||
0.45 um: 15 lpm/0.01MPa/10" |
![]() |

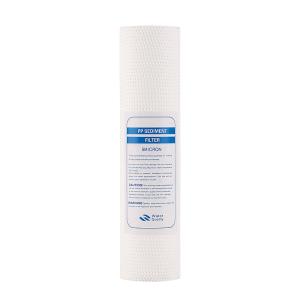

Household Pre-Filtration Water Refilling Filter Elements with Bacteria Removal Function Images |
